FEATURES
▶ PCB mounting type for general purpose
▶ Excellent frequency characteristics
▶ Use of insulating material having superior flame resistance

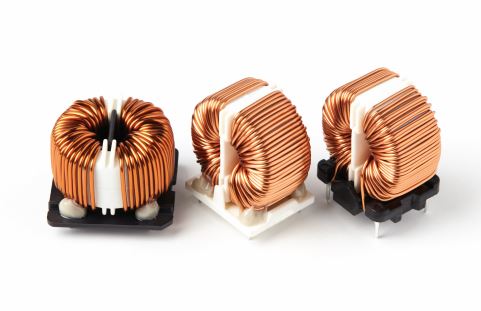

▶ Available either vertical mounting type or horizontal mounting type
APPLICATION
▶ Digital equipment's
▶ Personal computer and peripherals
▶ Switching power sources and switching power supply
▶ Various types of electronic equipment's
PART No & SPECIFICATION
Part No | Rated Current (A) | Rated Voltage (V) | Inductance (mH) | DC Resistance (mΩ) |
SHC25080260** | 4.0 | 300 | 26.0 | 95 |
SHC25090180** | 5.0 | 300 | 18.0 | 70 |
SHC25100100** | 7.0 | 300 | 10.0 | 50 |
SHC25120060** | 8.0 | 300 | 6.0 | 30 |
SHC25130050** | 10.0 | 300 | 5.0 | 20 |
▶ Operating Temperature Range (Including Ambient Temperature Range and Winding Temperature Rise) : -25℃ to 120℃
▶ Winding Temperature Rise (at Rated Current) is under 55℃
▶ Rising temperature is affected by PCB condition and an amount of harmonic.
Please make sure that the temperature of the coil is not exceeded the operating temperature range
▶ UL94V0 certified resin used.
▶ RoHS free
▶ Halogen free available
※ Custom made products are also available

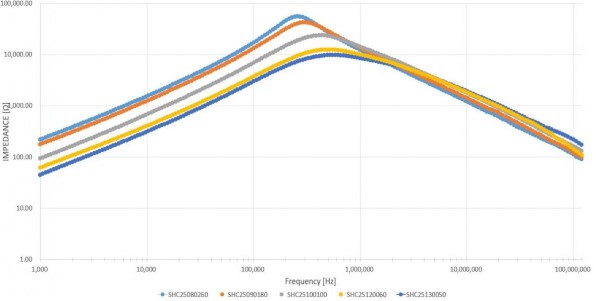

L / |Z| CHARACTERISTICS
SHAPE AND DIMENSION
TYPE | A (mm) MAX | B (mm) MAX | C (mm) MAX | D (mm) |
VERTICAL TYPE #1 | 33.0 | 35.0 | 25.0 | 4.0 ± 1.0 |
VERTICAL TYPE #2 | 33.0 | 35.0 | 25.0 | 4.0 ± 1.0 |
HORIZONTAL TYPE | 35.0 | 35.0 | 25.0 | 4.0 ± 1.0 |
For safety and the proper usage, you are requested to approve our product specification.
This contents are subject to change without advance notice.
Please check with our sales or R&D before ordering.
