FEATURES
▶ Help to adapt to various conditions such as sudden voltage changes
▶ Use of insulating material having superior flame resistance
APPLICATION
▶ for Solar Power Generation
▶ for Electric Vehicle
▶ for Home Appliances
▶ for Renewable Energy
▶ for Ballaster Water
PART No & SPECIFICATION
Part No | Division | Current (A) | Inductance (mH) | Wire |

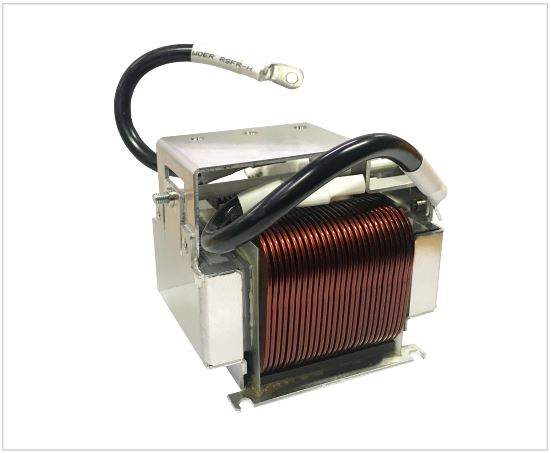

RECTANGLE REACTOR | DC | 60.0 | 1.0 | 2.0T X 10.0W |
▶ Rising temperature is affected by PCB condition and an amount of harmonic.
Please make sure that the temperature of the coil is not exceeded the operating temperature range
▶ UL94V0 certified resin used.
▶ RoHS free
▶ Halogen free available
▶ Custom made products are also available

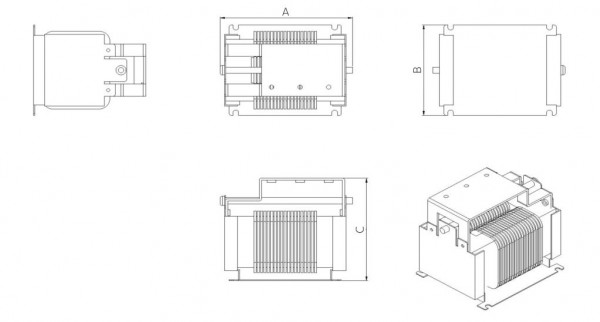

SHAPE
TYPE | A (mm) MAX | B (mm) | C (mm) |
RECTANGLE REACTOR | 125.0 | 88.0 ± 0.3 | 100.5 ± 0.6 |
For safety and the proper usage, you are requested to approve our product specification.
This contents are subject to change without advance notice.
Please check with our sales or R&D before ordering.
