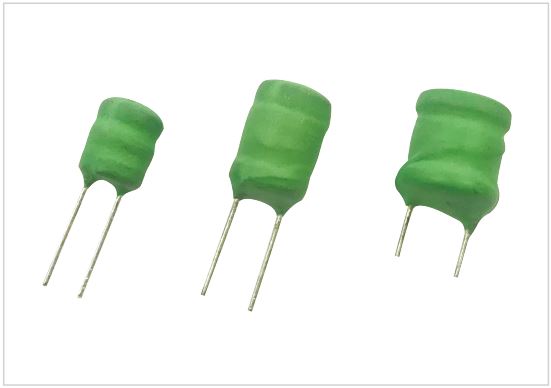

FEATURES
▶ PCB mounting type for miniature general purpose
▶ Require small space of PCB
▶ Excellent frequency characteristics
▶ Compact, and provide a large inductance
▶ Use of insulating material having superior flame resistance
APPLICATION
▶ Digital equipment's.
▶ For use in miniature equipment's
▶ Switching power sources and switching power supply adapters
▶ Various types of electronic equipment's
PART No & SPECIFICATION
Part No | Type of Wire (Φ) | Turns (ref) | Inductance (mH) | DC Resistance (mΩ) |
R04101KB00 | 0.10 | 68.5 | 0.100 | 2.00 |
R06470KB00 | 0.35 | 40.5 | 0.047 | 0.20 |
R06102KB00 | 0.16 | 185.5 | 1.000 | 3.00 |
R08B102KB00 | 0.23 | 173.5 | 1.000 | 1.50 |
R10332KB00 | 0.20 | 268.5 | 3.300 | 3.75 |
▶ Operating Temperature Range (Including Ambient Temperature Range and Winding Temperature Rise) : -25℃ to 65℃
▶ Rising temperature is affected by PCB condition and an amount of harmonic.
Please make sure that the temperature of the coil is not exceeded the operating temperature range
▶ UL94V0 certified resin used.
▶ RoHS free
▶ Halogen free available
※ Custom made products are also available

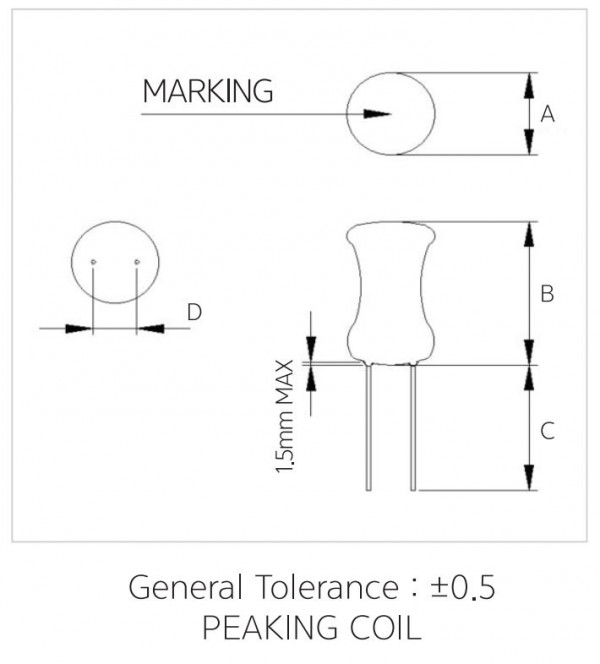

SHAPE AND DIMENSION
TYPE | A (mm) MAX | B (mm) MAX | C (mm) MAX | D (mm) |
R04 TYPE | 5.0 | 9.5 | 10.0 | 2.5 ± 0.5 |
R06 TYPE | 8.0 | 11.0 | 10.0 | 3.5 ± 0.5 |
R08 TYPE | 9.5 | 16.0 | 10.0 | 5.0 ref |
R10 TYPE | 13.0 | 16.0 | 10.0 | 7.0 ± 1.0 |
For safety and the proper usage, you are requested to approve our product specification.
This contents are subject to change without advance notice.
Please check with our sales or R&D before ordering.
.
